Sage Pastel and Fiscal Harmony Setup Guide

Overview: This guide provides the steps to integrate Sage Pastel with Fiscal Harmony for fiscalization of invoices and credit notes, ensuring compliance with the Zimbabwe Revenue Authority (ZIMRA).

1. Installation Process:

• Download the Plugin:
  • Access the plugin installer from this Google Drive link.
  • Download the DesktopPluginInstaller 3.0.3.1.

• Install the Plugin:
  • Run the installer on your computer.
  • Open the DDF installer and navigate to the appropriate database.

• Setup in Fiscal Harmony:

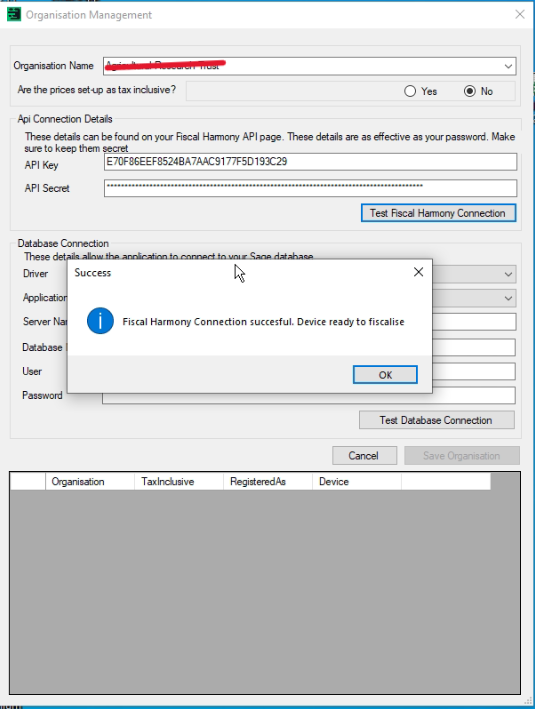

  • Open the Fiscal Harmony application and click on the “Setup files” tab.
  • Enter the company/organization name.
  • Choose the Tax method for prices in Sage Pastel.
  • Input your API key and API secret provided by Fiscal Harmony.

2. Establishing Connections:

• Fiscal Harmony Connection:

  • Select the appropriate Driver for your setup.
  • Choose the Database Type (e.g., Sage Pastel, Palladium, or Sage Evolution).
  • Enter the Database Name that is connected to your accounting system.
  • If the database requires credentials, provide the username and password.
  • Test the connection to ensure it is working correctly.
• Save Organization Details:

  • After the connection is successful, save your organization's details.

3. Currency and Tax Mapping:

• Map Currencies:

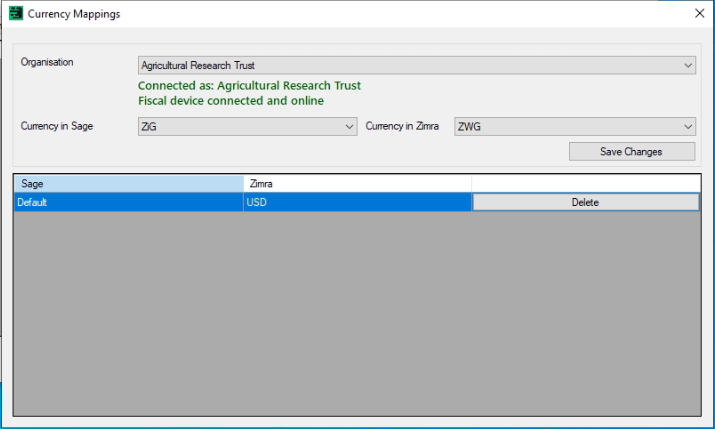

  • Click on “Currency Mappings” in the Fiscal Harmony application.
  • If you are using multi-currency in Sage Pastel, map your currencies to the corresponding ZIMRA currencies.
  • For single-currency setups, set the default currency to the corresponding ZIMRA currency.

• Map Taxes:

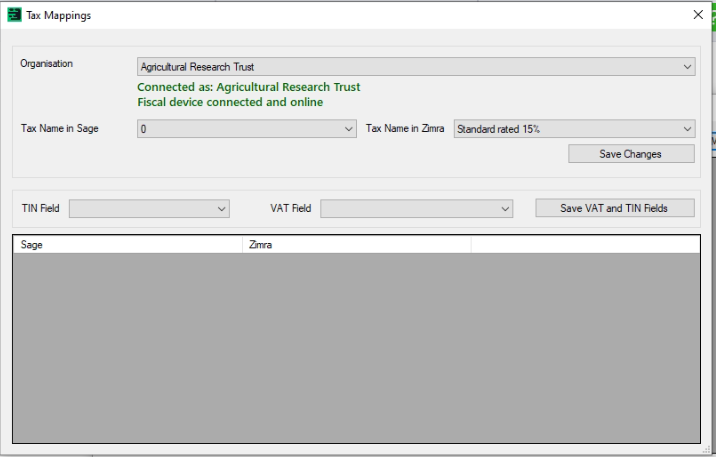

  • Click on “Tax Mappings” to map the tax rate codes in Sage Pastel to the appropriate ZIMRA tax rates.

4. Custom Fields for TIN and VAT Numbers:

• Set Custom Fields:

  • In Sage Pastel, set up the custom fields for TIN (Taxpayer Identification Number) and VAT (Value Added Tax) numbers.
  • Click the combo boxes in the Fiscal Harmony application and select the fields you wish to use.
  • Ensure that the TIN is exactly 10 digits and the VAT number is exactly 9 digits in the user-defined fields in Sage Pastel.
